MUR3020PT Ultra Fast Recovery Diodes

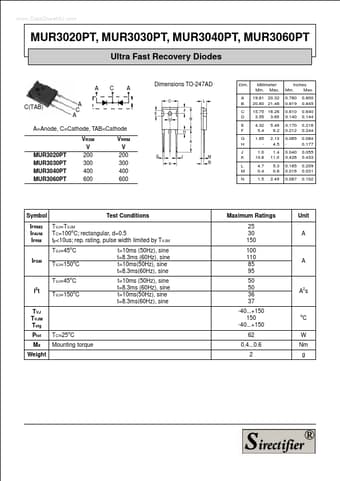

www.DataSheet4U.com MUR3020PT, MUR3030PT, MUR3040PT, MUR3060PT Ultra Fast Recovery Diodes Dimensions TO-247AD A C(TAB) A C A C A Dim. A B C D E F G H J K L M N Millimeter Min. Max. 19.81 20.32 20.80 21.46 15.75 16.26 3.55 3.65 4.32 5.4 1.65 1.0 10.8 4.7 0.4 1.5 5.49 6.2 2.13 4.5 1.4 11.0 5.3 0.8 2.49 Inches Min. Max. 0.780 0.819 0.610 0.140 0.170 0.212 0.065 0.040 0.426 0.185 0.016 0.087 0.800 0.845 0.640 0.144 0.216 0.244 0.084 0.177 0.055 0.433 0.209 0.031 0.102 A=Anode, C=Cathode, TAB.

MUR3020PT Features

* International standard package JEDEC TO-247AD

* Planar passivated chips

* Very short recovery time

* Extremely low switching losses

* Low IRM-values

* Soft recovery behaviour APPLICATIONS

* Rectifiers in switch mode power supplies (SMPS)

* Uninterruptible power sup

MUR3030PT_Sirectifier.pdf

MUR3020PT Datasheet Preview — This datasheet PDF includes multiple part numbers: MUR3020PT, MUR3030PT. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

MUR3020PT, MUR3030PT

Manufacturer:

Sirectifier

File Size:

161.71 KB

Description:

Ultra fast recovery diodes.

Note:

This datasheet PDF includes multiple part numbers: MUR3020PT, MUR3030PT.
Please refer to the document for exact specifications by model.
