MUR8100 - Ultra Fast Recovery Diodes

MUR8100 Ultra Fast Recovery Diodes C A Dimensions TO-220AC A C Dim.

A B C D E F G H J K L M N Q C(TAB) A=Anode, C=Cathode, TAB=Cathode MUR8100 VRSM V 1000 VRRM V 1000 Inches Min.

Max.

0.500 0.580 0.560 0.650 0.380 0.420 0.139 0.161 2.300 0.420 0.100 0.135 0.045 0.070 0.250 0.025 0.035 0.190 0.210 0.140 0.190 0.015 0.022 0.080 0.115 0.025 0.055 Milimeter Min.

Max.

12.70 14.73 14.23 16.51 9.66 10.66 3.54 4.08 5.85 6.85 2.54 3.42 1.15 1.77 6.35 0.64 0.89 4.83 5.33 3.56 4.82 0.38 0.56 2.04 2.

MUR8100 Features

* International standard package JEDEC TO-220AC

* Planar passivated chips

* Very short recovery time

* Extremely low switching losses

* Low IRM-values

* Soft recovery behaviour APPLICATIONS

* Antiparallel diode for high frequency switching devices

* Antisaturation di

MUR8100-Sirectifier.pdf

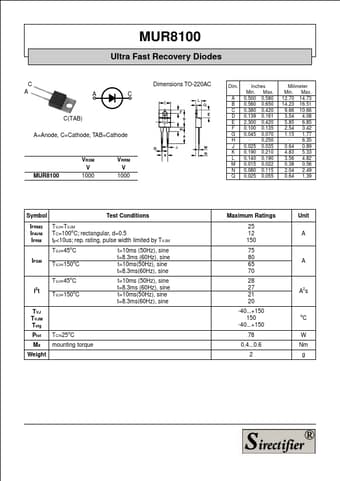

Preview of MUR8100 PDF
