SDM-08060-B1FY - Class AB 65W Power Amplifier

Product Overview

Sirenza Microdevices

Datasheet Details

Part number	SDM-08060-B1FY
Manufacturer	Sirenza Microdevices
File Size	121.23 KB
Description	Class AB 65W Power Amplifier
Datasheet	SDM-08060-B1FY Datasheet
Note	This datasheet PDF includes multiple part numbers: SDM-08060-B1FY, SDM-08060-B1F. Please refer to the document for exact specifications by model.

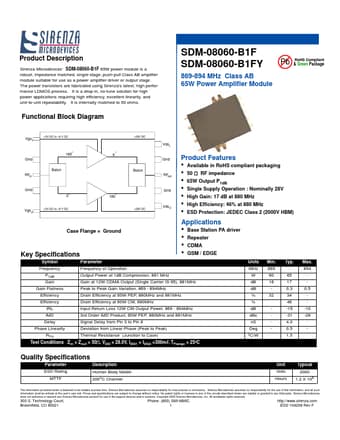

Additional preview pages of the SDM-08060-B1FY datasheet.

Product details

Description

Sirenza Microdevices’ SDM-08060-B1F 65W power module is a robust, impedance matched, single-stage, push-pull Class AB amplifier module suitable for use as a power amplifier driver or output stage.

Features

Available in RoHS compliant packaging Balun o 180.
RFout 50 W RF impedance.
65W Output P1dB.
Gnd Single Supply Operation : Nominally 28V.
High Gain: 17 dB at 880 MHz +28V DC Vds 2.
High Efficiency: 46% at 880 MHz.
ESD Protection: JEDEC Class 2 (2000V HBM) Case Flange = Ground Key Specifications.
