SDM-09060-B1F - Class AB 65W Power Amplifier

Datasheet Summary

Description

Sirenza Microdevices’ SDM-09060-B1F 65W power module is a robust impedance matched, single-stage, push-pull Class AB amplifier module suitable for use as a power amplifier driver or output stage.

The power transistors are fabricated using Sirenza's latest, high performance LDMOS process.

Features

  • Gnd Available in RoHS compliant packaging Balun.
  • 50 W RF impedance.
  • RFout 65W Output P1dB.
  • Single Supply Operation : Nominally 28V.
  • Gnd High Gain: 17 dB at 942 MHz o 180.
  • High Efficiency : 44% at 942 MHz +28V DC.
  • Vds 2 ESD Protection: JEDEC Class 2 (2000V HBM).

📥 Download Datasheet

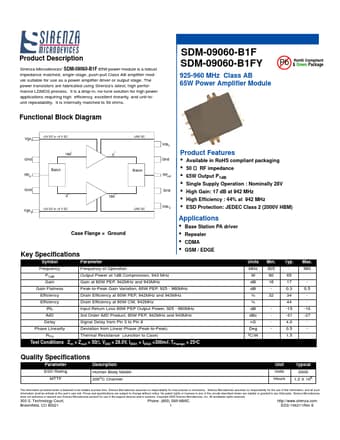

Datasheet preview – SDM-09060-B1F

Datasheet Details

Part number SDM-09060-B1F
Manufacturer Sirenza Microdevices
File Size 116.89 KB
Description Class AB 65W Power Amplifier
Datasheet download datasheet SDM-09060-B1F Datasheet
Additional preview pages of the SDM-09060-B1F datasheet.

📁 Similar Datasheet

  • SDM-HS53 - TFT LCD COLOR COMPUTER DISPLAY SERVICE MANUAL (Sony)
  • SDM-M81 - TFT LCD Color Computer Display (Sony)
  • SDM-M81 - TFT LCD Color Computer Display Service Manual (Sony)
  • SDM0230CSP - 0.2A SCHOTTKY BARRIER DIODE (Diodes)
  • SDM029N06D - 60V N-Channel MOSFET (YUHONG)
  • SDM02M30LP3 - ULTRA-SMALL SURFACE MOUNT SCHOTTKY DIODE (Diodes)
  • SDM02M50DAE - 500V/2A three-phase full-bridge driver IPM (Silan Microelectronics)
  • SDM02M50DAS - 500V/2A three-phase full-bridge driver IPM (Silan Microelectronics)
  • SDM02M50DBE - 3 PHASE FULL-BRIDGE 500V/2A IPM (Silan Microelectronics)
  • SDM02M50DBS - 3 PHASE FULL-BRIDGE 500V/2A IPM (Silan Microelectronics)
Other Datasheets by Sirenza Microdevices

Full PDF Text Transcription

Click to expand full text
Product Description Sirenza Microdevices’ SDM-09060-B1F 65W power module is a robust impedance matched, single-stage, push-pull Class AB amplifier module suitable for use as a power amplifier driver or output stage. The power transistors are fabricated using Sirenza's latest, high performance LDMOS process. It is a drop-in, no-tune solution for high power applications requiring high efficiency, excellent linearity, and unit-tounit repeatability. It is internally matched to 50 ohms.
