SDM-09060-B1FY Class AB 65W Power Amplifier

Sirenza Microdevices’ SDM-09060-B1F 65W power module is a robust impedance matched, single-stage, push-pull Class AB amplifier module suitable for use as a power amplifier driver or output stage. The power transistors are fabricated using Sirenza's latest, high performance LDMOS process. It is a dro.

SDM-09060-B1FY Features

* Gnd Available in RoHS compliant packaging Balun

* 50 W RF impedance

* RFout 65W Output P1dB

* Single Supply Operation : Nominally 28V

* Gnd High Gain: 17 dB at 942 MHz o 180

* High Efficiency : 44% at 942 MHz +28V DC

* Vds 2 ES

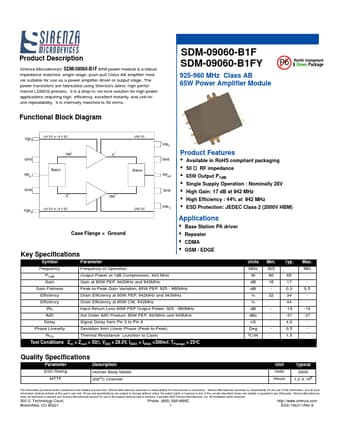

SDM-09060-B1F_SirenzaMicrodevices.pdf

SDM-09060-B1FY Datasheet Preview — This datasheet PDF includes multiple part numbers: SDM-09060-B1FY, SDM-09060-B1F. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SDM-09060-B1FY, SDM-09060-B1F

Manufacturer:

Sirenza Microdevices

File Size:

116.89 KB

Description:

Class ab 65w power amplifier.

Note:

This datasheet PDF includes multiple part numbers: SDM-09060-B1FY, SDM-09060-B1F.
Please refer to the document for exact specifications by model.
