SDM-09120 - Class AB 130W Power Amplifier Module

Product Overview

Sirenza Microdevices

Datasheet Details

Part number	SDM-09120
Manufacturer	Sirenza Microdevices
File Size	203.21 KB
Description	Class AB 130W Power Amplifier Module
Datasheet	SDM-09120 Datasheet

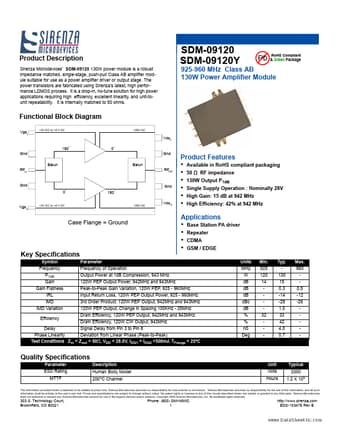

Additional preview pages of the SDM-09120 datasheet.

Product details

Description

Sirenza Microdevices’ SDM-09120 130W power module is a robust impedance matched, single-stage, push-pull Class AB amplifier module suitable for use as a power amplifier driver or output stage.

Features

RF out Gnd 0 +3V DC to +6 V DC o Gnd 180 o Vgs 2 +28V DC Vds 2.
Available in RoHS compliant packaging 50 W RF impedance 130W Output P1dB Single Supply Operation : Nominally 28V High Gain: 15 dB at 942 MHz High Efficiency: 42% at 942 MHz Case Flange = Ground.
