ST7545T Datasheet - Sitronix Technology

ST7545T 66 x 102 Dot Matrix LCD Controller/Driver

ST Sitronix 1. INTRODUCTION 2 ST7545T 66 x 102 Dot Matrix LCD Controller/Driver The ST7545T is a driver & controller LSI for graphic dot-matrix liquid crystal display systems. It contains 102 segments and 65 commons with 1 ICON driver circuits. This chip is connected directly to a microprocessor, accepts 8-bit parallel interface、3-line or 4-line serial peripheral interface (SPI)、I C interface, display data can stores in an on-chip display data RAM of 66 x 102 bits. It performs display data RA.

ST7545T Features

* Single-chip LCD controller & driver Driver Output Circuits 102-segment x 65-common + 1 ICON On-chip Display Data ram Capacity: 66X102=6,732 bits Generation of intermediate LCD bias voltages Oscillator requires no external components (external clock also supported) Voltage Booster (x4, x5) Voltage re

ST7545T Datasheet (1.29 MB)

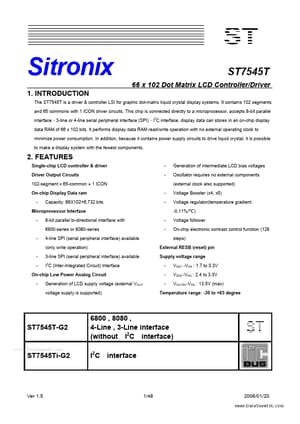

Preview of ST7545T PDF

Datasheet Details

Part number:

ST7545T

Manufacturer:

Sitronix Technology

File Size:

1.29 MB

Description:

66 x 102 dot matrix lcd controller/driver.
