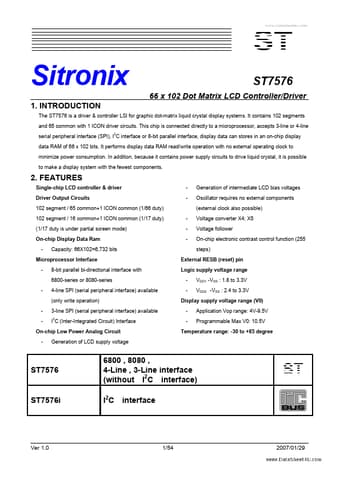

ST7576 Datasheet Preview Page 2 ST7576 Datasheet Preview Page 3

Datasheet Details

Part number:

ST7576

Manufacturer:

Sitronix Technology

File Size:

943.87 KB

Description:

Dot matrix lcd controller/driver.

ST7576, Dot Matrix LCD Controller/Driver

ST www.DataSheet4U.com Sitronix 1.

INTRODUCTION ST7576 66 x 102 Dot Matrix LCD Controller/Driver The ST7576 is a driver & controller LSI for graphic dot-matrix liquid crystal display systems.

It contains 102 segments and 65 common with 1 ICON driver circuits.

This chip is connected directly to a microprocessor, accepts 3-line or 4-line serial peripheral interface (SPI), I2C interface or 8-bit parallel interface, display data can stores in an on-chip display data RAM of 66 x 102 bits.

It perf

ST7576 Features

* Single-chip LCD controller & driver Driver Output Circuits 102 segment / 65 common+1 ICON common (1/66 duty) 102 segment / 16 common+1 ICON common (1/17 duty) (1/17 duty is under partial screen mode) On-chip Display Data Ram Capacity: 66X102=6,732 bits Generation of intermediate LCD bias voltages Os
