ST8009

96 Output LCD Common/ Segment Driver IC

ST8009 Features

* Number of LCD drive outputs: 96 Supply voltage for LCD drive (VOUT): Max +16V Supply voltage for logic system (VDD): +2.5 ~ +5.5V Low power consumption and low output impedance Display duty selectable by internal select register DU2,DU1,DU0 0 0 0 0 0 1 0 1 0 0 1 1 1 0 0 1 0 1 1 1 0 1 1 1 Abundant co

ST8009 General Description

The ST8009 is a 96-output segment/common driver IC suitable for driving small/medium scale dot matrix LCD panels, and is used in PDA or electronic dictionary. The ST8009 is good as a segment driver, a common driver or a common/segment driver, and it can create low power consumption, high-resolution .

ST8009 Datasheet (709.33 KB)

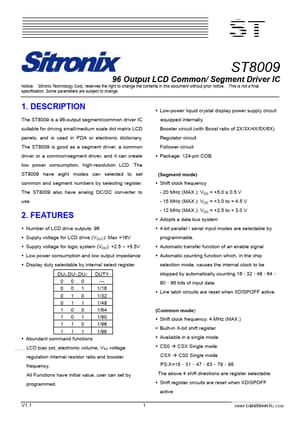

Preview of ST8009 PDF

Datasheet Details

Part number:

ST8009

Manufacturer:

Sitronix Technology

File Size:

709.33 KB

Description:

96 output lcd common/ segment driver ic.
ST ST8009 96 Output LCD Common/ Segment Driver IC Notice: Sitronix Technology Corp. reserves the right to change the contents in this document without.
