ST7066U Datasheet - Sitronix

ST7066U Dot Matrix LCD Controller/Driver

The ST7066U dot-matrix liquid crystal display controller and driver LSI displays alphanumeric, Japanese kana characters, and symbols. It can be configured to drive a dot-matrix liquid crystal display under the control of a 4- or 8-bit microprocessor. Since all the functions such as display RAM, char.

ST7066U Features

* 

* 5 x 8 and 5 x 11 dot matrix possible

* Low power operation support:

* 2.7 to 5.5V

* Wide range of LCD driver power

* 3.0 to 10V

* Correspond to high speed MPU bus interface

* 4-bit or 8-bit MPU interface enabled

* 80 x 8-bit display RAM (80 characters max.

ST7066U Datasheet (729.15 KB)

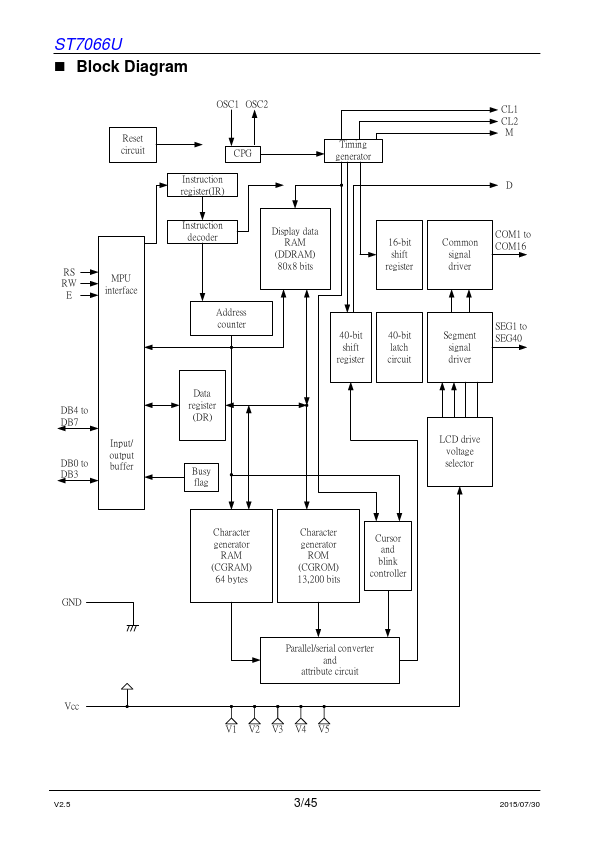

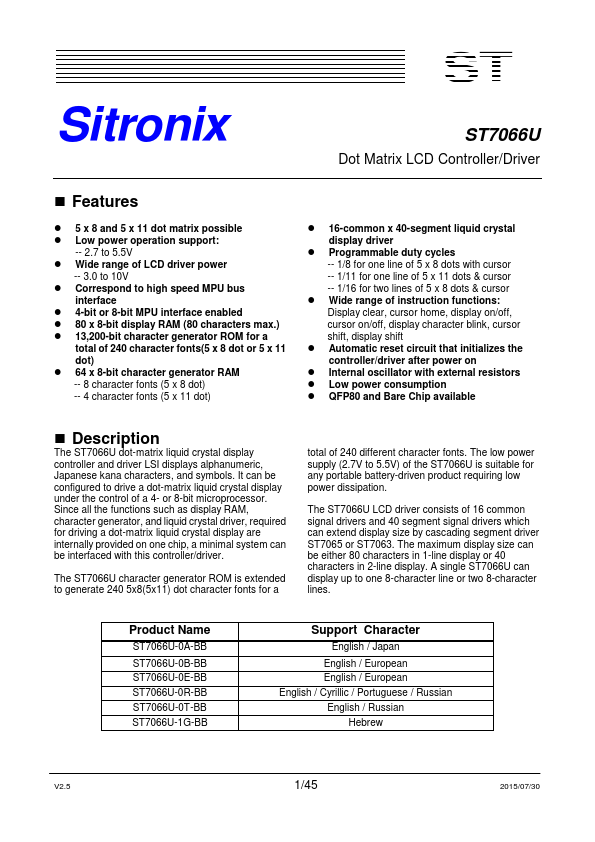

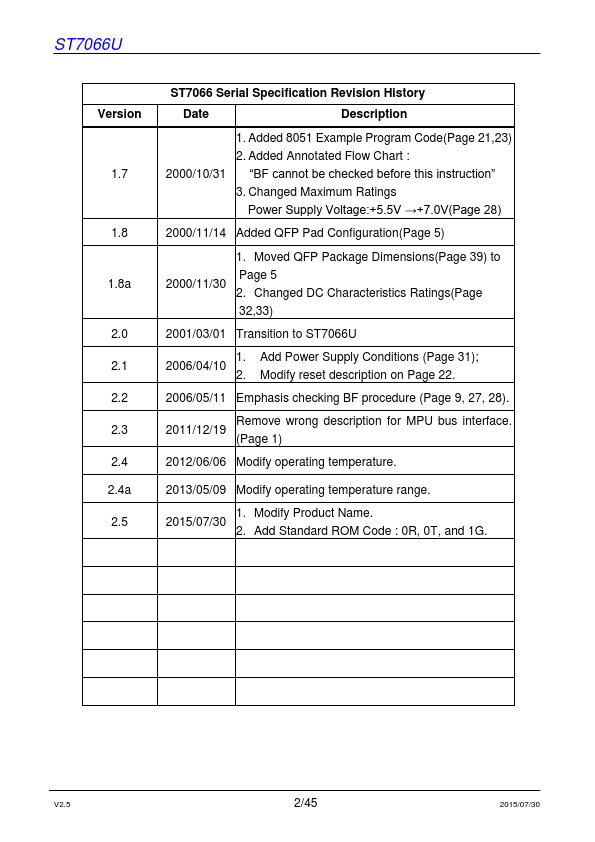

ST7066U Datasheet Preview — Preview of ST7066U PDF

Datasheet Details

Part number:

ST7066U

Manufacturer:

Sitronix

File Size:

729.15 KB

Description:

Dot matrix lcd controller/driver.
