SC00080710, Mis Chip Capacitors

MIS Chip Capacitors SC Series .
Alpha’s MIS Chip Capacitors are available in a wide range of sizes and capacitance values.

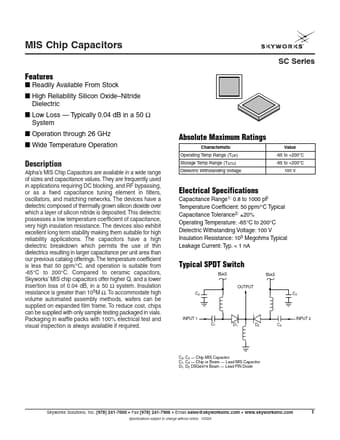

datasheet Preview Page 1 from Datasheet4u.com

SC00080710_SkyworksSolutions.pdf

SC00080710 Datasheet Preview — Preview of SC00080710 PDF

Datasheet Details

Part number:

SC00080710

Manufacturer:

Skyworks Solutions

File Size:

96.13 KB

Description:

Mis Chip Capacitors

Features

* Readily Available From Stock
* High Reliability Silicon Oxide
* Nitride Dielectric
* Low Loss
* Typically 0.04 dB in a 50 Ω System
* Operation through 26 GHz
* Wide Temperature Operation Absolute Maximum Ratings Characteristic Operating Temp Range (TOP) Value -65

Applications

* requiring DC blocking, and RF bypassing, or as a fixed capacitance tuning element in filters, oscillators, and matching networks. The devices have a dielectric composed of thermally grown silicon dioxide over which a layer of silicon nitride is deposited. This dielectric possesses a low temperature
