SE2620T Datasheet - Skyworks Solutions

2.4 GHz Wireless LAN/BT Front-End

SE2620T Features

* Dual Mode IEEE802.11b & IEEE802.11g Integrated PA, Harmonic Filter, LNA and BT port Integrated Positive Slope Power Detector 18 dBm @ 3 % EVM, 802.11g, 54 Mbps 3.3 V or 5.0V nominal supply on VCC1, VCC2. Lead free, Halogen free and RoHS compliant Compact pac

SE2620T General Description

The SE2620T is a complete 802.11 b/g/n WLAN RF front-end module with a Bluetooth port. The device provides all the functionality of the power amplifier, power detector, harmonic filtering, switch, low noise amplifier, and associated matching. The SE2620T provides a complete 2.4 GHz WLAN RF solution .

SE2620T Datasheet (341.86 KB)

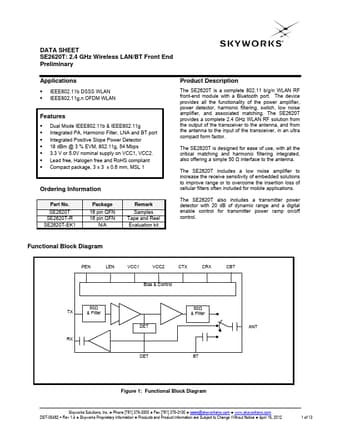

SE2620T Datasheet Preview — Preview of SE2620T PDF

Datasheet Details

Part number:

SE2620T

Manufacturer:

Skyworks Solutions

File Size:

341.86 KB

Description:

2.4 ghz wireless lan/bt front-end.
DATA SHEET SE2620T: 2.4 GHz Wireless LAN/BT Front End Preliminary Applications IEEE802.11b DSSS WLAN IEEE802.11g,n OFDM WLAN Product Desc.
