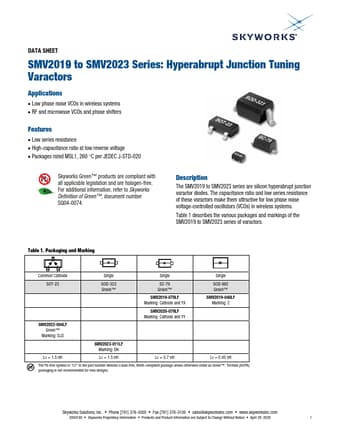

SMV2020
Features
- Low series resistance
- High-capacitance ratio at low reverse voltage
- Packages rated MSL1, 260 °C per JEDEC J-STD-020
Skyworks Green™ products are pliant with all applicable legislation and are halogen-free. For additional information, refer to Skyworks Definition of Green™, document number SQ04-0074.
Description
The SMV2019 to SMV2023 series are silicon hyperabrupt junction varactor diodes. The capacitance ratio and low series resistance of these varactors make them attractive for low phase noise voltage-controlled oscillators (VCOs) in wireless systems.
Table 1 describes the various packages and markings of the SMV2019 to SMV2023 series of varactors.
Table 1. Packaging and Marking mon Cathode
Single
Single
Single
SOT-23
SOD-323 Green™
SC-79 Green™
SOD-882 Green™
SMV2019-079LF Marking: Cathode and YX
SMV2019-040LF Marking: Z
SMV2020-079LF Marking: Cathode and YY
SMV2022-004LF Green™
Marking: DJ3
SMV2023-011LF Marking: DK
LS = 1.5 n H
LS = 1.5 n H
LS = 0.7...
