AAT3121 Datasheet, Pump, Skyworks

AAT3121 Features

  • Pump
  • VIN Range: 2.7V to 5.5V
  • <1µA of Shutdown
  • Only Four External Components
  • Programmable LED Brightness
  • Low Noise Constant Frequency Operati

PDF File Details

Part number:

AAT3121

Manufacturer:

Skyworks

File Size:

791.41kb

Download:

📄 Datasheet

Description:

High efficiency 1.5x fractional charge pump. The AAT3121 is a low noise, constant frequency charge pump DC/DC converter that uses fractional (1.5X) conversion to increase efficie

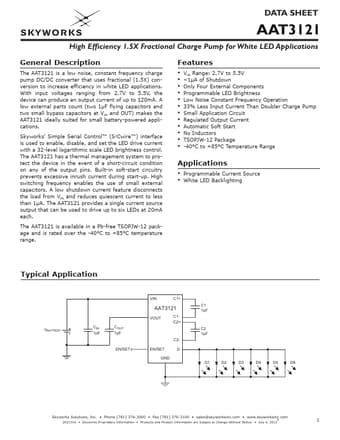

Datasheet Preview: AAT3121 📥 Download PDF (791.41kb)
Page 2 of AAT3121 Page 3 of AAT3121

AAT3121 Application

  • Applications General Description The AAT3121 is a low noise, constant frequency charge pump DC/DC converter that uses fractional (1.5X) conversion
