AAT3176A - 500mA LED Flash Driver

AAT3176A Description

General .
The AAT3176A is a high output current, high efficiency, low noise, low profile charge pump converter IC, ideal for multi-function LED photo-flash appl.

AAT3176A Features

* 2.7V to 5.5V Supply Voltage Range
* Up to 500mA Output Drive Capability at 3.6V VIN
* Flexible Brightness Control ▪ 16 Step Output Current by S2Cwire
* Separate External Resistors to Set Maximum Flash and Movie-Mode Current
* Dual Mode 1x/2x Charge Pump

AAT3176A Applications

* where solution cost, size, and efficiency are critical. The charge pump is capable of delivering up to 500mA of output current and can be easily programmed in 16 steps with a single GPIO output through Skyworks' S2Cwire™ (Simple Serial Control) interface. This allows smooth transitions and flexible

📥 Download Datasheet

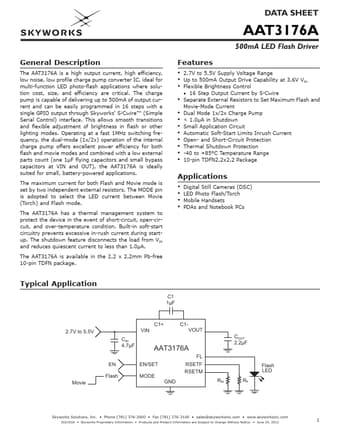

Preview of AAT3176A PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AAT3176A
Manufacturer
Skyworks
File Size
2.06 MB
Datasheet
AAT3176A-Skyworks.pdf
Description
500mA LED Flash Driver
