AHK3292

Two-Channel LED Driver

AHK3292 Features

* 2.7V to 5.5V Input Supply Range

* Drives up to 2 LEDs at up to 30.2mA each

* Low Resistance

AHK3292 General Description

The AHK3292 is a linear current-sink LED driver, capable of driving one or two LEDs up to 30.2mA each. Featuring individual low resistance, low drop-out voltage current sinks, the AHK3292 allows the LEDs to be regulated directly from a Lithium Ion/Polymer battery without the need for an additional s.

AHK3292 Datasheet (1.13 MB)

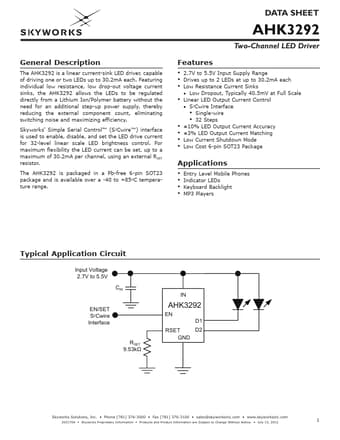

Preview of AHK3292 PDF

Datasheet Details

Part number:

AHK3292

Manufacturer:

Skyworks

File Size:

1.13 MB

Description:

Two-channel led driver.
