DME2830-000, DME2851-000 Silicon Beam-Lead Schottky Mixer Diode Bondable Beam-Lead Devices

DME2830-000 Description

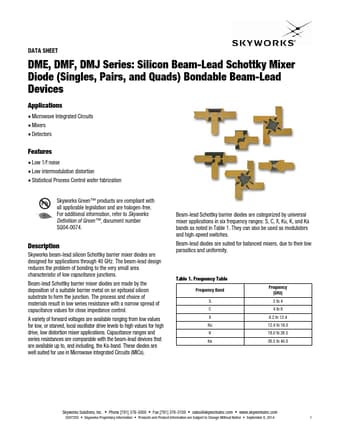

DATA SHEET DME, DMF, DMJ Series: Silicon Beam-Lead Schottky Mixer Diode (Singles, Pairs, and Quads) Bondable Beam-Lead Devices Applications * Micr.
Skyworks beam-lead silicon Schottky barrier mixer diodes are designed for applications through 40 GHz.

DME2830-000 Features

* Low 1/f noise
* Low intermodulation distortion
* Statistical Process Control wafer fabrication Skyworks Green™ products are compliant with all applicable legislation and are halogen-free. For additional information, refer to Skyworks Definition of Green™, document number SQ04-0074. Des

DME2830-000 Applications

* Microwave Integrated Circuits
* Mixers

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: DME2830-000, DME2851-000. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
DME2830-000, DME2851-000
Manufacturer
Skyworks
File Size
734.17 KB
Datasheet
DME2851-000-Skyworks.pdf
Description
Silicon Beam-Lead Schottky Mixer Diode Bondable Beam-Lead Devices
Note
This datasheet PDF includes multiple part numbers: DME2830-000, DME2851-000.
Please refer to the document for exact specifications by model.
