DME3927 Silicon Beamless Schottky Diodes

DME3927 Description

DATA SHEET Silicon Beamless Schottky Diodes: Pairs and Quads Applications * Microwave MIC assembly and automated high volume manufacturing lines .
Skyworks beamless diode family is designed for a high degree of device reliability in both commercial and industrial uses.

DME3927 Features

* Mechanically rugged design
* Three barrier heights for optimized mixer performance
* Wide product range: series pair, ring, bridge, and eight-diode rings
* Use in ring or crossover designs in double balanced mixers
* Virtually any LO requirement can be met with choice of barrie

DME3927 Applications

* Microwave MIC assembly and automated high volume manufacturing lines

📥 Download Datasheet

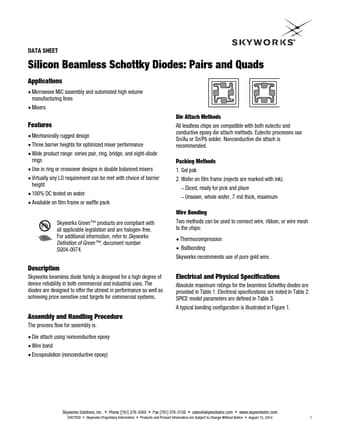

Preview of DME3927 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
DME3927
Manufacturer
Skyworks
File Size
467.00 KB
Datasheet
DME3927-Skyworks.pdf
Description
Silicon Beamless Schottky Diodes
