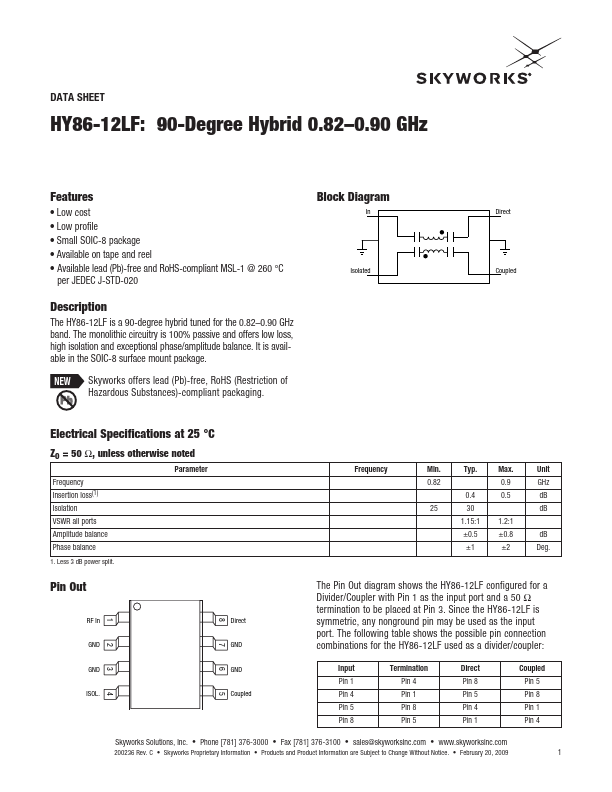

HY86-12LF - 90-Degree Hybrid

Skyworks

HY86-12LF Datasheet Preview — Preview of HY86-12LF PDF

Datasheet Details

Part number	HY86-12LF
Manufacturer	Skyworks
File Size	60.00 KB
Description	90-Degree Hybrid
Datasheet	HY86-12LF-Skyworks.pdf

HY86-12LF Product details

Description

The฀HY86-12LF฀is฀a฀90-degree฀hybrid฀tuned฀for฀the฀0.82 0.90฀GHz฀ band.฀The฀monolithic฀circuitry฀is฀100%฀passive฀and฀offers฀low฀loss,฀ high฀isolation฀and฀exceptional฀phase/amplitude฀balance.฀It฀is฀available฀in฀the฀SOIC-8฀surface฀mount฀package.

Features

l Low cost l฀Low฀profile l฀Small฀SOIC-8฀package l ฀Available฀on฀tape฀and฀reel l฀A฀ vailable฀lead฀(Pb)-free฀and฀RoHS-compliant฀MSL-1฀@฀260฀°C฀ per฀JEDEC฀J-STD-020.
