Si5362, Si5361 Any-Output Jitter Attenuator/Clock Multiplier

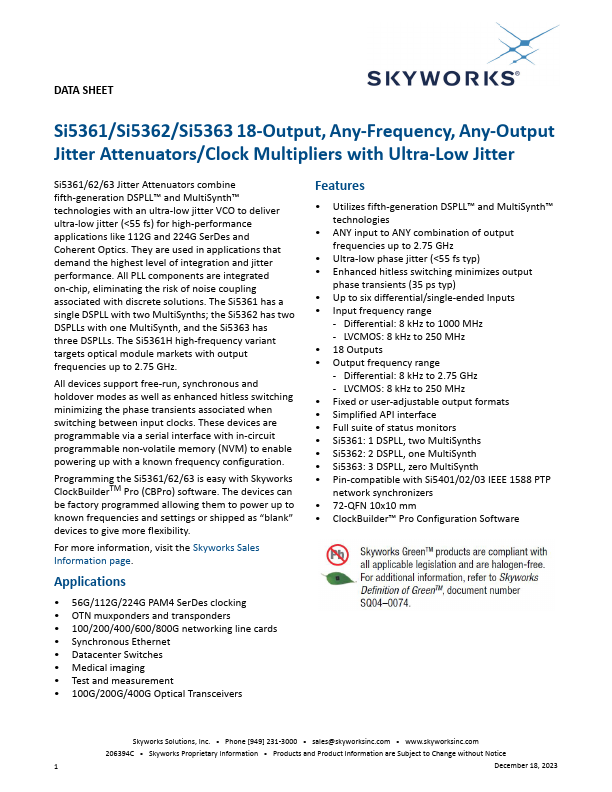

📥 Download Datasheet Datasheet Preview Page 1

Description

DATA SHEET Si5361/Si5362/Si5363 18-Output, Any-Frequency, Any-Output  Jitter Attenuators/Clock Multipliers with Ultra-Low Jitter Si5361/62/63 Jitte.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: Si5362, Si5361. Please refer to the document for exact specifications by model.

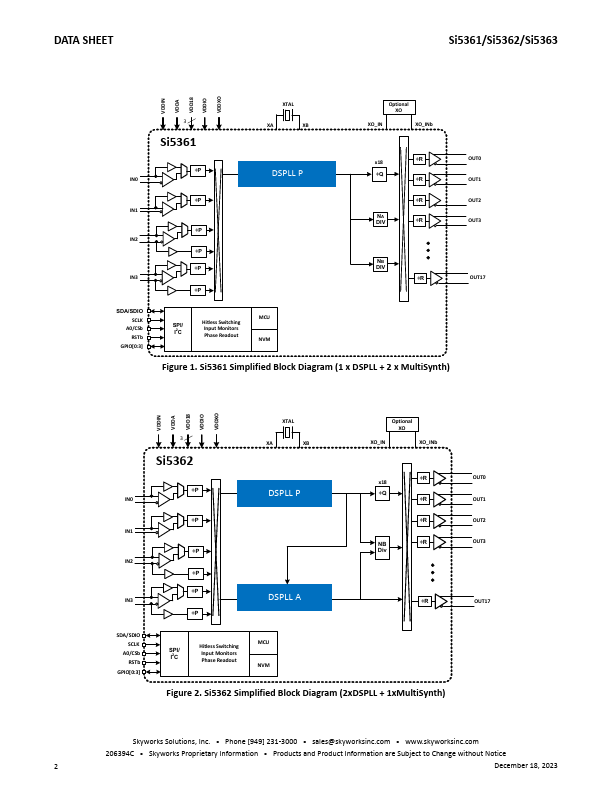

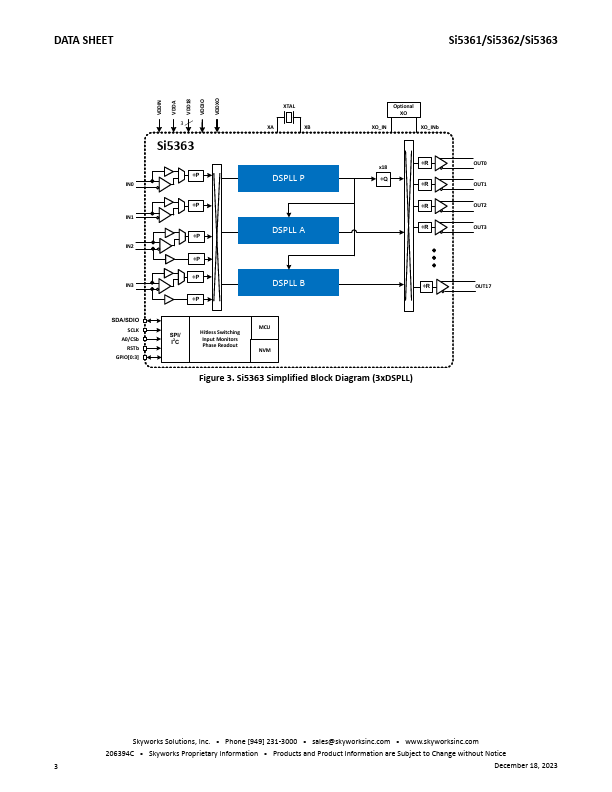

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
Si5362, Si5361
Manufacturer
Skyworks
File Size
1.90 MB
Datasheet
Si5361-Skyworks.pdf
Description
Any-Output Jitter Attenuator/Clock Multiplier
Note
This datasheet PDF includes multiple part numbers: Si5362, Si5361.
Please refer to the document for exact specifications by model.

Features

* Utilizes fifth-generation DSPLL™ and MultiSynth™ technologies
* ANY input to ANY combination of output frequencies up to 2.75 GHz
* Ultra-low phase jitter (

Applications

* like 112G and 224G SerDes and  Coherent Optics. They are used in applications that demand the highest level of integration and jitter performance. All PLL components are integrated  on-chip, eliminating the risk of noise coupling associated with discrete solutions. The Si5361 has a single DSPLL wi
