Si82D29 Isolated Gate Driver

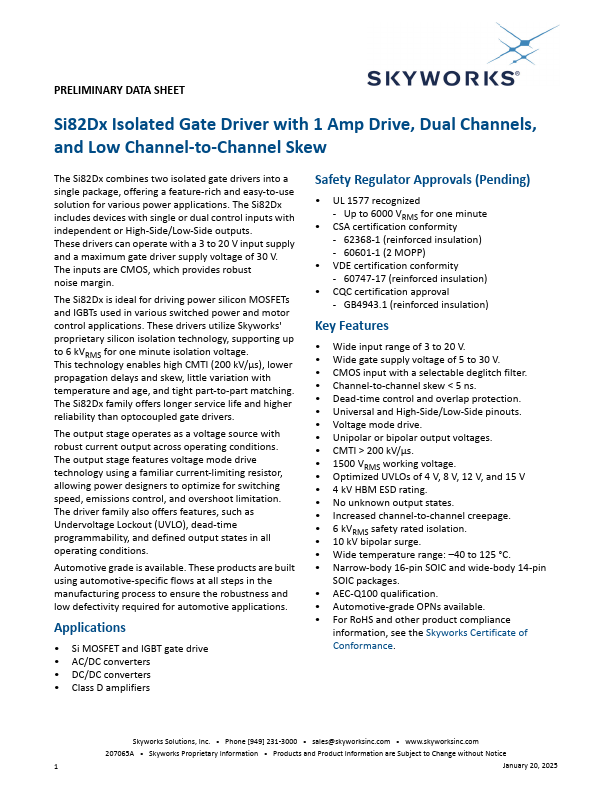

📥 Download Datasheet  Datasheet Preview Page 1

Description

PRELIMINARY DATA SHEET Si82Dx Isolated Gate Driver with 1 Amp Drive, Dual Channels, and Low Channel-to-Channel Skew The Si82Dx combines two isolated.
1.

📥 Download Datasheet

Preview of Si82D29 PDF

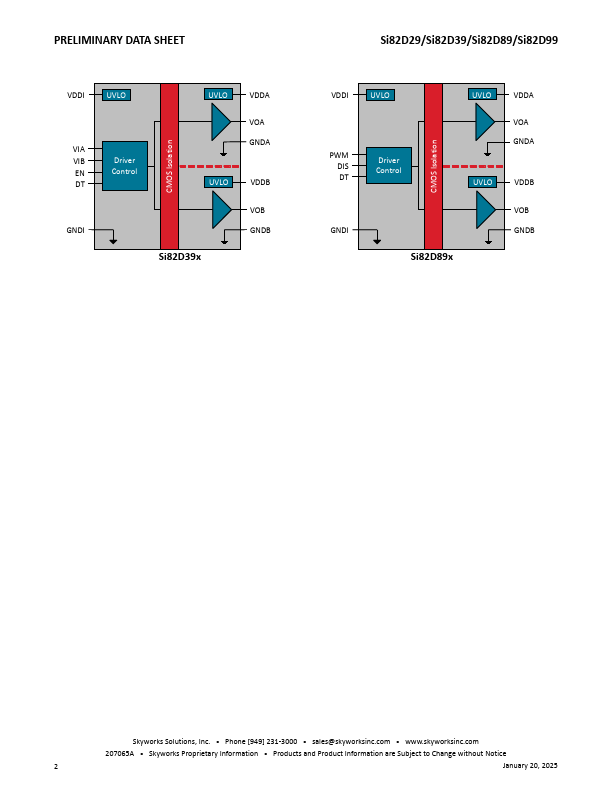

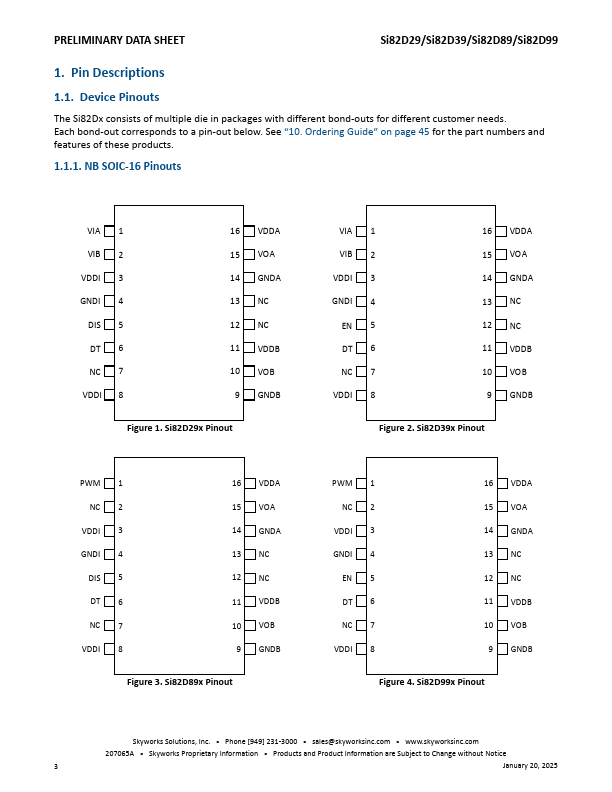

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
Si82D29
Manufacturer
Skyworks
File Size
681.04 KB
Datasheet
Si82D29-Skyworks.pdf
Description
Isolated Gate Driver

Features

* voltage mode drive technology using a familiar current-limiting resistor, allowing power designers to optimize for switching speed, emissions control, and overshoot limitation. The driver family also offers features, such as Undervoltage Lockout (UVLO), dead-time programmability, and defined output

Applications

* The Si82Dx includes devices with single or dual control inputs with independent or High-Side/Low-Side outputs.  These drivers can operate with a 3 to 20 V input supply and a maximum gate driver supply voltage of 30 V.  The inputs are CMOS, which provides robust  noise margin. The Si82Dx is ideal
