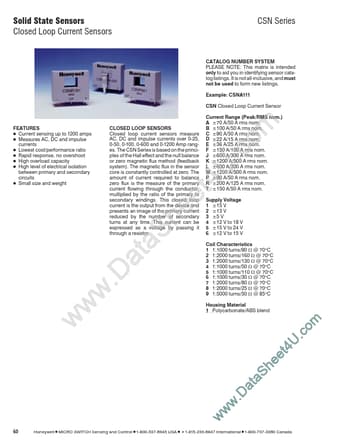

Solid State Sensors Closed Loop Current Sensors CSN Series CATALOG NUMBER SYSTEM PLEASE NOTE: This matrix is intended only to aid you in identifying sensor catalog listings.
It is not all-inclusive, and must not be used to form new listings.
Example: CSNA111 CSN Closed Loop Current Sensor Current Range (Peak/RMS nom.) A ±70 A/50 A rms nom.
B ±100 A/50 A rms nom.
C ±90 A/50 A rms nom.
D ±22 A/15 A rms nom.
E ±36 A/25 A rms nom.
F ±150 A/100 A rms nom.
J ±600 A/300 A rms nom.
K ±1200 A/500 A rms
CSNP661 Features
* ɀ Current sensing up to 1200 amps ɀ Measures AC, DC and impulse currents ɀ Lowest cost/performance ratio ɀ Rapid response, no overshoot ɀ High overload capacity ɀ High level of electrical isolation between primary and secondary circuits ɀ Small size and weight CLOSED LOOP SENSORS Closed loop curren
Datasheet Details
CSNP661, CSNF161
Soild State Sensors
968.79 KB
Closed loop current sensors.
This datasheet PDF includes multiple part numbers: CSNP661, CSNF161.
Please refer to the document for exact specifications by model.
