CSNR161, CSNF161 Datasheet - Soild State Sensors

CSNR161 Closed Loop Current Sensors

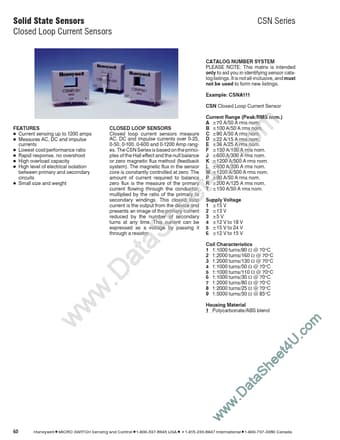

Solid State Sensors Closed Loop Current Sensors CSN Series CATALOG NUMBER SYSTEM PLEASE NOTE: This matrix is intended only to aid you in identifying sensor catalog listings. It is not all-inclusive, and must not be used to form new listings. Example: CSNA111 CSN Closed Loop Current Sensor Current Range (Peak/RMS nom.) A ±70 A/50 A rms nom. B ±100 A/50 A rms nom. C ±90 A/50 A rms nom. D ±22 A/15 A rms nom. E ±36 A/25 A rms nom. F ±150 A/100 A rms nom. J ±600 A/300 A rms nom. K ±1200 A/500 A rms.

CSNR161 Features

* ɀ Current sensing up to 1200 amps ɀ Measures AC, DC and impulse currents ɀ Lowest cost/performance ratio ɀ Rapid response, no overshoot ɀ High overload capacity ɀ High level of electrical isolation between primary and secondary circuits ɀ Small size and weight CLOSED LOOP SENSORS Closed loop curren

CSNF161_SoildStateSensors.pdf
