M212 - 1 Form B Solid State Relay

Description

The M212 is a bi-directional, single-pole, single-throw, normally closed multipurpose solid-state relay in a miniature 4-pin small outline package.

It is designed to replace electromechanical relays in general purpose switching applications.

📥 Download Datasheet

Datasheet Details

Part number M212
Manufacturer Solid State Optronic
File Size 163.44 KB
Description 1 Form B Solid State Relay
Datasheet download datasheet M212 Datasheet

📁 Similar Datasheet

  • M2120 - OPERATIONAL AMPLIFIER (UTC)
  • M2125 - SINGLE-SUPPLY OPERTIONAL AMPLIFIER (UTC)
  • M21-001 - IR Control (Mosdesign Semiconductor)
  • M21-002 - IR Control (Mosdesign Semiconductor)
  • M2100 - DUAL OPERATIONAL AMPLIFIER (Unisonic Technologies)
  • M2102A - STATIC RANDOM ACCESS MEMORY (SGS)
  • M2102AL - STATIC RANDOM ACCESS MEMORY (SGS)
  • M2107 - SINGLE OPERATIONAL AMPLIFIER (Unisonic Technologies)
  • M210W1-L01 - TFT LCD Module (CHI MEI)
  • M210X - Clock Oscillator (MTRONPTI)
Other Datasheets by Solid State Optronic
  • M211 - 1 Form A Solid State Relay

Full PDF Text Transcription

Click to expand full text

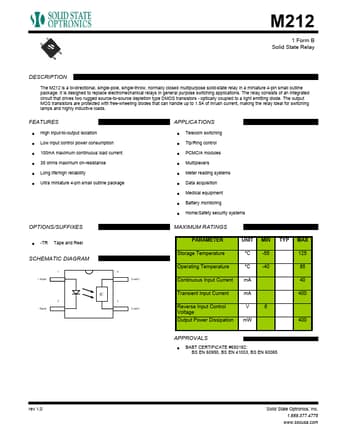

www.DataSheet4U.com M212 1 Form B Solid State Relay DESCRIPTION The M212 is a bi-directional, single-pole, single-throw, normally closed multipurpose solid-state relay in a miniature 4-pin small outline package. It is designed to replace electromechanical relays in general purpose switching applications. The relay consists of an integrated circuit that drives two rugged source-to-source depletion type DMOS transistors - optically coupled to a light emitting diode. The output MOS transistors are protected with free-wheeling diodes that can handle up to 1.5A of inrush current, making the relay ideal for switching lamps and highly inductive loads.
