SP646-X

1 Form A Solid State Relay

SP646-X Features

* APPLICATIONS

* Inverse parallel SCR output High transient immunity 400V blocking voltage 1.2A maximum continuous current Low input control current High input-to-output isolation Solid state reliability Zero-vo

SP646-X General Description

The SP646-X is a bi-directional, single-pole, single-throw, normally open multipurpose relay. The circuit is composed of one LED on the input side which activates an optically coupled IC on the output - controlling the firing angle of two back-to-back SCRs. This circuit assures no false triggering u.

SP646-X Datasheet (186.11 KB)

Preview of SP646-X PDF

Datasheet Details

Part number:

SP646-X

Manufacturer:

Solid State Optronic

File Size:

186.11 KB

Description:

1 form a solid state relay.

📁 Related Datasheet

SP646 1 Form A Solid State Relay (Solid State Optronic)

SP6415 Integrated White LED Driver (Sipex Corporation)

SP600 Half Bridge 500VDC Driver (Intersil)

SP60001 600MHz Low-loss SAW Filter 45MHz Bandwidth (SIPAT)

SP6002 Synchronous Rectifier Driver (SYNC POWER)

SP6003 Synchronous Rectifier Driver (SYNC POWER)

SP6003 TVS Diode Arrays (Littelfuse)

SP6003A Synchronous Rectifier Driver (SYNC POWER)

SP6007 Fast Turn-off Intelligent Rectifier (SYNC POWER)

SP601 Half Bridge 500V DC Driver (Intersil Corporation)

TAGS

SP646-X Form Solid State Relay Solid State Optronic

Image Gallery

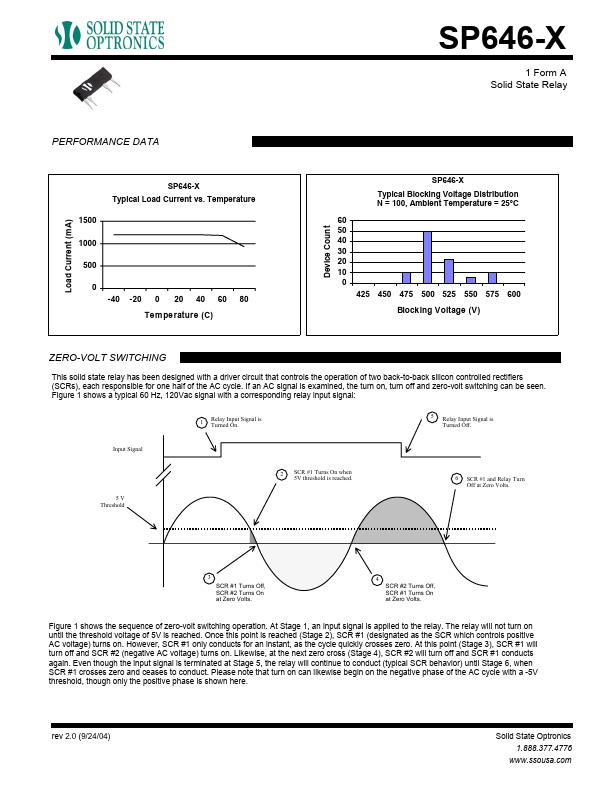

SP646-X Datasheet Preview Page 2 SP646-X Datasheet Preview Page 3
