STR8082 - Relay

Description

The STR8082 is a bi-directional, single-pole, single-throw, normally open multipurpose relay.

The device consists of an IR LED optically coupled to a random phase switching AC output structure.

It has a high blocking voltage (800V) and can handle continuous load currents of up to 0.8ARMS.

Features

  • High Blocking Voltage (800V).
  • 0.8ARMS Continuous Load Current.
  • Random Phase Switching.
  • Low Control Current (.

📥 Download Datasheet

Datasheet Details

Part number STR8082
Manufacturer Solid State Optronic
File Size 341.19 KB
Description Relay
Datasheet download datasheet STR8082 Datasheet

📁 Similar Datasheet

  • STR80000 - Hybrid Auto-Switch Module-Doubler (Sanken)
  • STR80145A - (STR80000 Series) Hybrid Auto-Switch Module-Doubler (Sanken)
  • STR80145A - (STRxxxx) Voltage Doubler/Bridge Rectifier Automatic Switch ICs (Sanken electric)
  • STR81145 - Hybrid Auto-Switch Module-Doubler (Sanken)
  • STR81145A - (STRxxxx) Voltage Doubler/Bridge Rectifier Automatic Switch ICs (Sanken electric)
  • STR81159A - Voltage Doubler/Bridge Rectifier Automatic Switch ICs (Sanken)
  • STR81159A - (STRxxxx) Voltage Doubler/Bridge Rectifier Automatic Switch ICs (Sanken electric)
  • STR82145 - (STRxxxx) Voltage Doubler/Bridge Rectifier Automatic Switch ICs (Sanken electric)
  • STR83145 - LATCHED / UNIVERSAL INPUT-VOLTAGE SWITCHES (Allegro)
  • STR83145 - Voltage Doubler / Bridge Rectifier Automatic Switch IC (Sanken)
Other Datasheets by Solid State Optronic

Full PDF Text Transcription

Click to expand full text

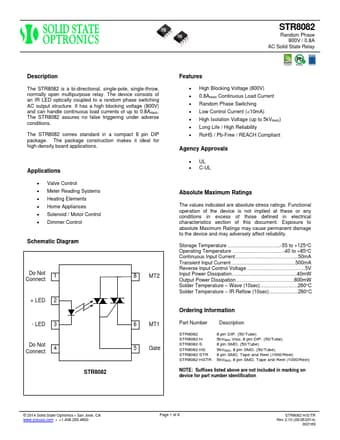

STR8082 Random Phase 800V / 0.8A AC Solid State Relay Description The STR8082 is a bi-directional, single-pole, single-throw, normally open multipurpose relay. The device consists of an IR LED optically coupled to a random phase switching AC output structure. It has a high blocking voltage (800V) and can handle continuous load currents of up to 0.8ARMS. The STR8082 assures no false triggering under adverse conditions. The STR8082 comes standard in a compact 8 pin DIP package. The package construction makes it ideal for high-density board applications.
