M251 Datasheet - Solid State Optronics

Relay

M251 Features

* Low on-resistance (1 ohm MAX)

* High Load Current Rating (400mA continuous MAX)

* Low input current (2.5mA MAX)

* High input-to-output isolation (1500Vrms)

* Ultra Miniature 4 pin SOP package

* Long life / high reliability OPTIONS/SUFFIXES

M251 General Description

The M251 is a bi-directional, single-pole, single-throw, normally open solid-state relay. It offers low on-resistance and high load current ratings in an ultra miniature 4 pin SOP package. The relay consists of an AlGaAs infrared LED, optically coupled to an IC, which in turn drives two back to back.

M251 Datasheet (166.51 KB)

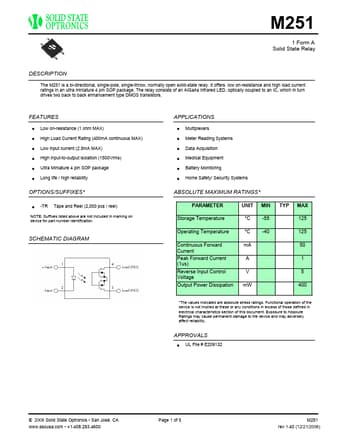

M251 Datasheet Preview — Preview of M251 PDF

Datasheet Details

Part number:

M251

Manufacturer:

Solid State Optronics

File Size:

166.51 KB

Description:

Relay.
