M272 Datasheet, Relay, Solid State Optronics

M272 Features

  • Relay APPLICATIONS
  • 1 Form B (normally closed) SSR
  • Low input control power consumption (1.5mA TYP)
  • High Load Current Rating (125mA)
  • Low on-resistance

PDF File Details

Part number:

M272

Manufacturer:

Solid State Optronics

File Size:

170.82kb

Download:

📄 Datasheet

Description:

Relay. The M272 is a bi-directional, single-pole, single-throw, normally closed multipurpose solid-state relay in a miniature 4-pin small o

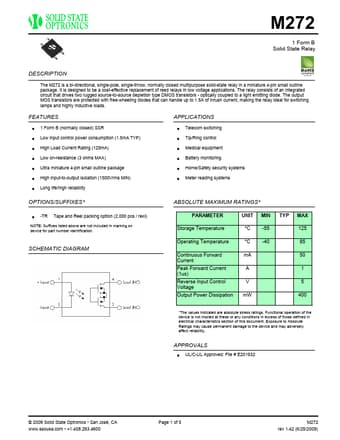

Datasheet Preview: M272 📥 Download PDF (170.82kb)
Page 2 of M272 Page 3 of M272

M272 Application

  • Applications The relay consists of an integrated circuit that drives two rugged source-to-source depletion type DMOS transistors - optically couple
