SDR1184 - (SDR1183 - SDR1190) 35 Amp 50-600 Volt 5 nsec STANDARD RECOVERY RECTIFIER

Product Overview

Solid States Devices

Part number	SDR1184
Manufacturer	Solid States Devices
File Size	117.23 KB
Description	(SDR1183 - SDR1190) 35 Amp 50-600 Volt 5 nsec STANDARD RECOVERY RECTIFIER
Datasheet	SDR1184 Datasheet
Note	This datasheet PDF includes multiple part numbers: SDR1184, SDR1183. Please refer to the document for exact specifications by model.

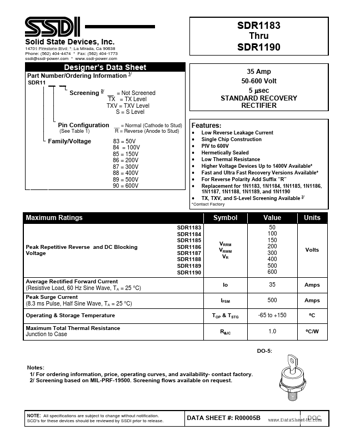

Additional preview pages of the SDR1184 datasheet.

Low Reverse Leakage Current Single Chip Construction PIV to 600V Hermetically Sealed Low Thermal Resistance Higher Voltage Devices Up to 1400V Available.
Fast and Ultra Fast Recovery Versions Available.
For Reverse Polarity Add Suffix “R” Replacement for 1N1183, 1N1184, 1N1185, 1N1186, 1N1187, 1N1188, 1N1189, and 1N1190 TX, TXV, and S-Level Screening Available 2/ Part Number/Ordering Inf.
