SFS1826 - SILICON CONTROLLED RECTIFIER

Product Overview

Solid States Devices

Part number	SFS1826
Manufacturer	Solid States Devices
File Size	126.17 KB
Description	SILICON CONTROLLED RECTIFIER
Datasheet	SFS1826 Datasheet

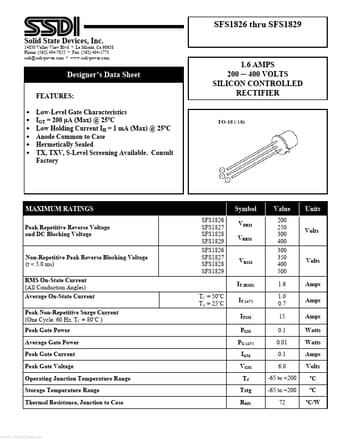

Additional preview pages of the SFS1826 datasheet.

Low-Level Gate Characteristics IGT = 200 µA (Max) @ 25oC Low Holding Current IH = 1 mA (Max) @ 25oC Anode Common to Case Hermetically Sealed TX, TXV, S-Level Screening Available. Consult Factory 1.6 AMPS 200 ─ 400 VOLTS.
