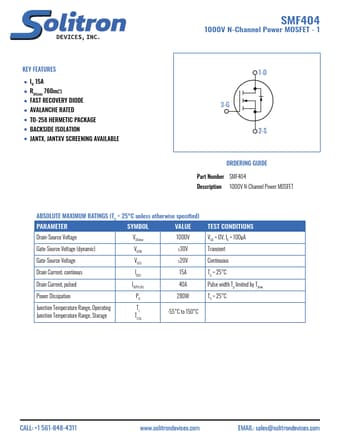

SMF404
FEATURES
ID 15A RDS(on) 760mΩ FAST RECOVERY DIODE AVALANCHE RATED TO-258 HERMETIC PACKAGE BACKSIDE ISOLATION JANTX, JANTXV SCREENING AVAILABLE
1-D
3-G 2-S
ORDERING GUIDE Part Number SMF404 Description
1000V N-Channel Power MOSFET
ABSOLUTE MAXIMUM RATINGS (TC = 25°C unless otherwise specified)
PARAMETER
SYMBOL
VALUE
Drain-Source Voltage
VDSmax
1000V
Gate-Source Voltage (dynamic)
VGSM
±30V
Gate-Source Voltage
VGSS
±20V
Drain Current, continous
ID25
15A
Drain Current, pulsed
ID(PULSE)
40A
Power Dissipation
280W
Junction Temperature Range, Operating
Junction Temperature Range, Storage
TSTG
-55°C to 150°C
TEST CONDITIONS VGS = 0V, ID = 100µA Transient Continuous TC = 25°C Pulse width Tp limited by TJmax TC = 25°C
CALL: +1 561-848-4311
.solitrondevices.
EMAIL: sales@solitrondevices.
1000V N-Channel Power MOSFET
- 2
ELECTRICAL SPECIFICATIONS (TJ = 25°C unless otherwise...
