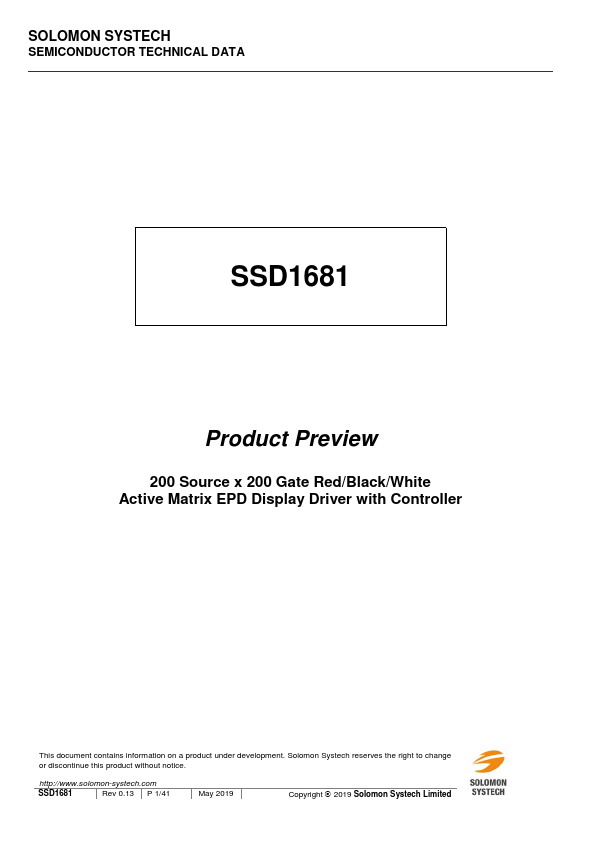

SSD1681
DESCRIPTION
SSD1681 is an Active Matrix EPD display driver with controller for Red/Black/White EPD displays.
It consists of 200 source outputs, 200 gate outputs, 1 V and 1VBD (for border), which can support displays with resolution up to 200x200.
In the SSD1681, data and mands are sent from MCU through hardware selectable serial peripheral interface. It has embedded booster, regulator and oscillator which is suitable for EPD display applications.
2 FEATURES
- Design for dot matrix type active matrix EPD display, support Red/Black/White color
- Resolution: 200 source outputs, 200 gate outputs, 1 V and 1VBD (for border)
- Power supply:
- VCI: 2.2 to 3.7V
- VDDIO: Connect to VCI
- VDD: 1.8V, regulate from VCI supply
- On chip display RAM
- Mono B/W: 200x200 bits
- Mono Red: 200x200 bits
- On-chip booster and regulator for generating V, Gate and Source driving voltage
- Gate driving output voltage: 2-level outputs (VGH, VGL), Max 40Vp-p
- VGH: 10V to 20V (Voltage...
