SRE-05VDC-FD-2A - RELAY

Download the SRE-05VDC-FD-2A datasheet PDF. This datasheet also covers the SRE-05VDC-SL-2A variant, as both devices belong to the same relay family and are provided as variant models within a single manufacturer datasheet.

Key Features

  • Small size and low cost.
  • Low coil power consumption.
  • PCB mounting.
  • Switching capacity from 1A to 5A.
  • Sealed type available. 2.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (SRE-05VDC-SL-2A-Songle.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number SRE-05VDC-FD-2A
Manufacturer Songle
File Size 80.57 KB
Description RELAY
Datasheet download datasheet SRE-05VDC-FD-2A Datasheet

Full PDF Text Transcription for SRE-05VDC-FD-2A (Reference)

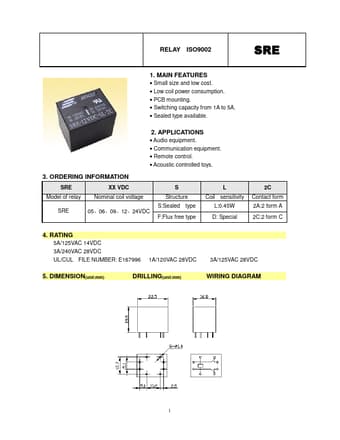

Note: Below is a high-fidelity text extraction (approx. 800 characters) for SRE-05VDC-FD-2A. For precise diagrams, and layout, please refer to the original PDF.

RELAY ISO9002 1. MAIN FEATURES • Small size and low cost. • Low coil power consumption. • PCB mounting. • Switching capacity from 1A to 5A. • Sealed type available. 2. AP...

View more extracted text
ng. • Switching capacity from 1A to 5A. • Sealed type available. 2. APPLICATIONS • Audio equipment. • Communication equipment. • Remote control. • Acoustic controlled toys. 3. ORDERING INFORMATION SRE Model of relay SRE XX VDC Nominal coil voltage 05 06 09 12 24VDC S Structure S:Sealed type F:Flux free type L Coil sensitivity L:0.45W D: Special 2C Contact form 2A:2 form A 2C:2 form C 4. RATING 5A/125VAC 14VDC 3A/240VAC 28VDC UL/CUL FILE NUMBER: E167996 1A/120VAC 28VDC 3A/125VAC 28VDC 5. DIMENSION(unit:mm) DRILLING(unit:mm) WIRING DIAGRAM 1 6.
