SRE-06VDC-SL-2A - RELAY

Download the SRE-06VDC-SL-2A datasheet PDF. This datasheet also covers the SRE-05VDC-SL-2A variant, as both devices belong to the same relay family and are provided as variant models within a single manufacturer datasheet.

Features

  • Small size and low cost.
  • Low coil power consumption.
  • PCB mounting.
  • Switching capacity from 1A to 5A.
  • Sealed type available. 2.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (SRE-05VDC-SL-2A-Songle.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number SRE-06VDC-SL-2A
Manufacturer Songle
File Size 80.57 KB
Description RELAY
Datasheet download datasheet SRE-06VDC-SL-2A Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SRE100N065FSUD8 100A 650V Trench Fieldstop IGBT Sanrise
SRE10UF HIGH REVERSE ENERGY ABSORPTION CAPABILITY ULTRA FAST RECTIFIER Solid States Devices
SRE11UF HIGH REVERSE ENERGY ABSORPTION CAPABILITY ULTRA FAST RECTIFIER Solid States Devices
SRE12UF HIGH REVERSE ENERGY ABSORPTION CAPABILITY ULTRA FAST RECTIFIER Solid States Devices
SRE13UF HIGH REVERSE ENERGY ABSORPTION CAPABILITY ULTRA FAST RECTIFIER Solid States Devices

Other Datasheets by Songle

Part Number Description
SRE-06VDC-SL-2C RELAY
SRE-06VDC-SD-2A RELAY
SRE-06VDC-SD-2C RELAY
SRE-06VDC-FD-2A RELAY
SRE-06VDC-FD-2C RELAY

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

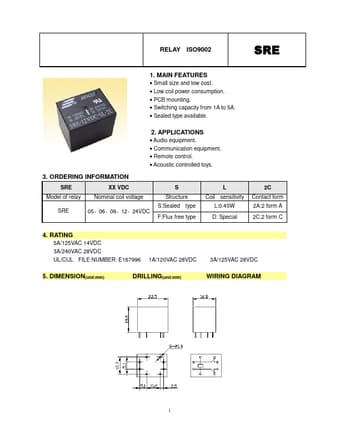

RELAY ISO9002 1. MAIN FEATURES • Small size and low cost. • Low coil power consumption. • PCB mounting. • Switching capacity from 1A to 5A. • Sealed type available. 2. APPLICATIONS • Audio equipment. • Communication equipment. • Remote control. • Acoustic controlled toys. 3. ORDERING INFORMATION SRE Model of relay SRE XX VDC Nominal coil voltage 05 06 09 12 24VDC S Structure S:Sealed type F:Flux free type L Coil sensitivity L:0.45W D: Special 2C Contact form 2A:2 form A 2C:2 form C 4. RATING 5A/125VAC 14VDC 3A/240VAC 28VDC UL/CUL FILE NUMBER: E167996 1A/120VAC 28VDC 3A/125VAC 28VDC 5. DIMENSION(unit:mm) DRILLING(unit:mm) WIRING DIAGRAM 1 6.
