CXA1101M, CXA - DOLBY B TYPE NOISE REDUCTION SYSTEM

Sony Corporation

The CXA1101M by Sony Corporation is a DOLBY B TYPE NOISE REDUCTION SYSTEM. Below is the official datasheet preview.

📥 Download Datasheet

CXA1101M DOLBY B TYPE NOISE REDUCTION SYSTEM by Sony Corporation - Datasheet Preview — Official preview page of the CXA1101M DOLBY B TYPE NOISE REDUCTION SYSTEM datasheet (Sony Corporation).

Datasheet Details

Part number	CXA1101M, CXA
Manufacturer	Sony Corporation
File Size	473.58 KB
Description	DOLBY B TYPE NOISE REDUCTION SYSTEM
Datasheet	CXA-1100.pdf
Note	This datasheet PDF includes multiple part numbers: CXA1101M, CXA. Please refer to the document for exact specifications by model.

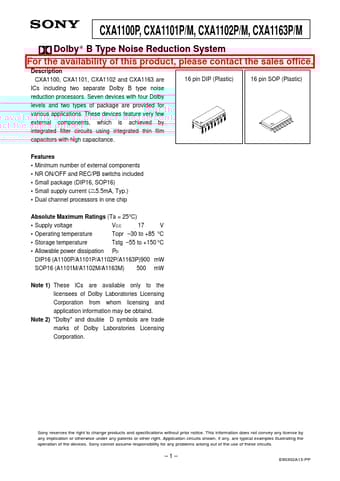

Additional preview pages of the CXA1101M datasheet.

CXA1101M Product details

Description

CXA1100, CXA1101, CXA1102 and CXA1163 are ICs including two separate Dolby B type noise reduction processors.

Features

Minimum number of external components.
NR ON/OFF and REC/PB switchs included.
Small package (DIP16, SOP16) ~ 5.5mA, Typ. ).
Small supply current (.
Dual channel processors in one chip Absolute Maximum Ratings (Ta = 25°C).
Supply voltage VCC 17 V.
Operating temperature Topr.
30 to +85 °C.
Storage temperature Tstg.
55 to +150 °C.
Allowable power dissipation PD DIP16 (A1100P/A1101P/A1102P/A1163.
