CXA1202Q-Z

REC/PB Amplifier

Sony Corporation

📥 Download PDF (427.69 KB)

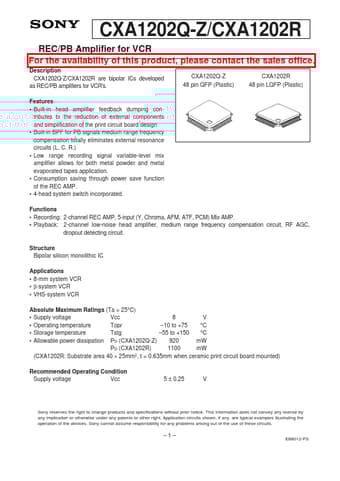

CXA1202Q-Z Datasheet Preview Page 1 — Preview of CXA1202Q-Z Datasheet

Datasheet Details

Part number:

CXA1202Q-Z

Manufacturer:

Sony Corporation

File Size:

427.69 KB

Download:

📄 Download CXA1202Q-Z Datasheet PDF

Description:

Rec/pb amplifier.
CXA1202Q-Z/CXA1202R REC/PB Amplifier for VCR For the availability of this product, please contact th.
CXA1202Q-Z/CXA1202R are bipolar ICs developed as REC/PB amplifiers for VCR's. Features * Built-in he.

✔ CXA1202Q-Z Features

Built-in head amplifier feedback dumping contributes to the reduction of external components and simplification of the print circuit board design.
Built-in BPF for PB

✔ CXA1202Q-Z Application

8-mm system VCR
β-system VCR
VHS-system VCR Absolute Maximum Ratings (Ta = 25°C)
