CXA1315P, 8-bit D/A Converter Supporting with I2C Bus

CXA1315M/P 8-bit D/A Converter Supporting with I2C Bus .
The CXA1315M/P is developed as a 5-channel 8bit D/A converter supporting with I2C bus. Serial control through I2C bus. 5-c.

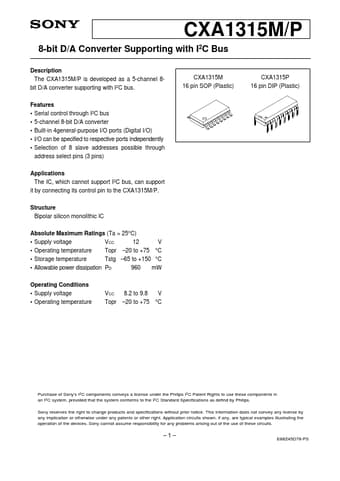

datasheet Preview Page 1 from Datasheet4u.com

CXA1315P_SonyCorporation.pdf

CXA1315P Datasheet Preview — Preview of CXA1315P PDF

Datasheet Details

Part number:

CXA1315P

Manufacturer:

Sony Corporation

File Size:

308.58 KB

Description:

8-bit D/A Converter Supporting with I2C Bus

Features

* Serial control through I2C bus
* 5-channel 8-bit D/A converter
* Built-in 4general-purpose I/O ports (Digital I/O)
* I/O can be specified to respective ports independently
* Selection of 8 slave addresses possible through address select pins (3 pins) Applica

Applications

* The IC, which cannot support I2C bus, can support it by connecting its control pin to the CXA1315M/P. Structure Bipolar silicon monolithic lC Absolute Maximum Ratings (Ta = 25°C)
* Supply voltage VCC 12 V
* Operating temperature Topr
* 20 to +75 °C
* Storage temperatur
