CXA1511L Preamplifier for Remote Control Signal Reception

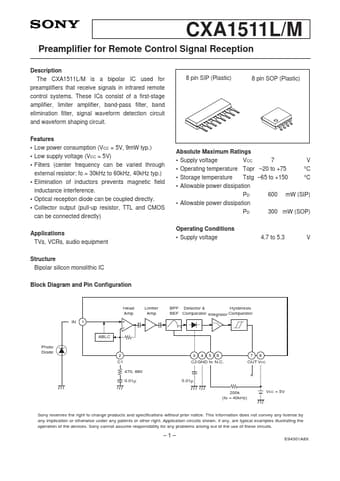

📥 Download Datasheet  Datasheet Preview Page 1

Description

CXA1511L/M Preamplifier for Remote Control Signal Reception .
The CXA1511L/M is a bipolar IC used for preamplifiers that receive signals in infrared remote control systems.

📥 Download Datasheet

Preview of CXA1511L PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
CXA1511L
Manufacturer
Sony Corporation
File Size
136.90 KB
Datasheet
CXA1511L_SonyCorporation.pdf
Description
Preamplifier for Remote Control Signal Reception

Features

* Low power consumption (VCC = 5V, 9mW typ. )
* Low supply voltage (VCC = 5V)
* Filters (center frequency can be varied through external resistor: fo = 30kHz to 60kHz, 40kHz typ. )
* Elimination of inductors prevents magnetic field inductance interference.
* Opt

Applications

* TVs, VCRs, audio equipment Structure Bipolar silicon monolithic IC Block Diagram and Pin Configuration 8 pin SIP (Plastic) 8 pin SOP (Plastic) Absolute Maximum Ratings 7 V
* Supply voltage VCC
* Operating temperature Topr
* 20 to +75 °C
* Storage temperature Tstg
