CXA1700AQ - Luminance and Color Signal Processing for 8mm VCR

Sony Corporation

📥 Download Datasheet

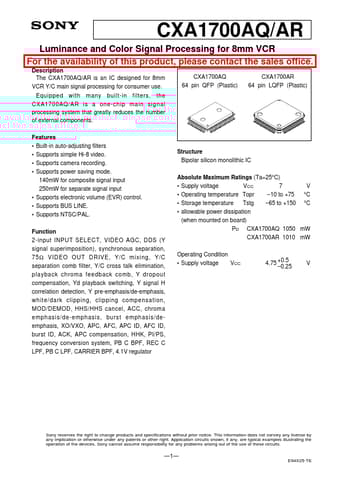

CXA1700AQ Datasheet Preview — Preview of CXA1700AQ PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: CXA1700AQ
Manufacturer: Sony Corporation
File Size: 794.58 KB
Datasheet: CXA1700AQ_SonyCorporation.pdf
Description: Luminance and Color Signal Processing for 8mm VCR

CXA1700AQ Product details

Description

The CXA1700AQ/AR is an IC designed for 8mm VCR Y/C main signal processing for consumer use..

Features

Built-in auto-adjusting filters.
Supports simple Hi-8 video.
Supports camera recording.
Supports power saving mode. 140mW for composite signal input 250mW for separate signal input.
Supports electronic volume (EVR) control.
Supports BUS LINE.
Supports NTSC/PAL. Function 2-input.
