CXA1994AM Datasheet, Comparator, Sony Corporation

CXA1994AM Features

  • Comparator
  • Low power consumption 70µA (at VCC = 1.4V, including the current on battery saving control pin)
  • Low voltage operation VCC = 1.0 to 4.0V Applications M-ary FSK pagers

PDF File Details

Part number:

CXA1994AM

Manufacturer:

Sony Corporation

File Size:

119.82kb

Download:

📄 Datasheet

Description:

M-ary fsk demodulating comparator. The CXA1994AM/BM is a comparator which allows the M-ary (4-level) FSK data to be demodulated in combination with an FM IF amplifier f

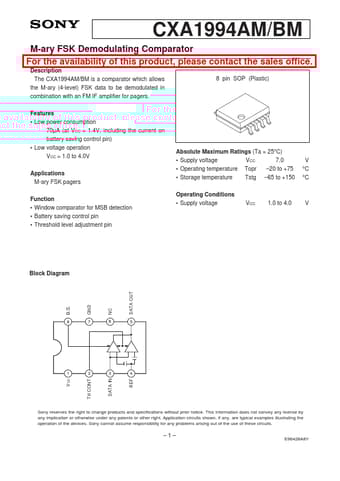

Datasheet Preview: CXA1994AM 📥 Download PDF (119.82kb)
Page 2 of CXA1994AM Page 3 of CXA1994AM

CXA1994AM Application

  • Applications M-ary FSK pagers Function
  • Window comparator for MSB detection
  • Battery saving control pin
  • Threshold level
