CXA2020M - EIAJ Sound Multiplexing Decoder

Datasheet Summary

Description

The CXA2020M/S, is a bipolar IC designed as EIAJ TV sound multiplexing decoder, provides various functions including sound multiplexing demodulation, broadcast mode identification (stereo/bilingual discrimination display), mode display, and muting.

Features

  • Adjustment free of filter.
  • High frequency stereo separation improved.
  • An internal active filter greatly reduces the external parts.
  • Use of the countdown method for broadcast mode identification eliminates the necessity of adjusting the identification system (Cue oscillator).
  • Output level: 520mVrms (1kHz, monaural, 100%).
  • Internal filter eliminates interference from digital facsimile signals.
  • The discrimination time needed to s.

📥 Download Datasheet

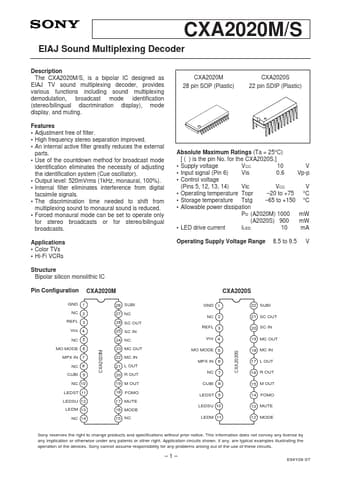

Datasheet preview – CXA2020M

Datasheet Details

Part number CXA2020M
Manufacturer Sony Corporation
File Size 247.21 KB
Description EIAJ Sound Multiplexing Decoder
Datasheet download datasheet CXA2020M Datasheet
