CXA2020S EIAJ Sound Multiplexing Decoder

CXA2020S Description

CXA2020M/S EIAJ Sound Multiplexing Decoder .
The CXA2020M/S, is a bipolar IC designed as EIAJ TV sound multiplexing decoder, provides various functions including sound multiplexing demodulation,.

CXA2020S Features

* Adjustment free of filter.
* High frequency stereo separation improved.
* An internal active filter greatly reduces the external parts.
* Use of the countdown method for broadcast mode identification eliminates the necessity of adjusting the identification system (C

CXA2020S Applications

* Color TVs
* Hi-Fi VCRs Structure Bipolar silicon monolithic IC Pin Configuration GND 1 NC 2 REFL 3 Vcc 4 NC 5 CXA2020M 28 pin SOP (Plastic) CXA2020S 22 pin SDIP (Plastic) Absolute Maximum Ratings (Ta = 25°C) [ ( ) is the pin No. for the CXA2020S. ]
* Supply voltage VCC 10

📥 Download Datasheet

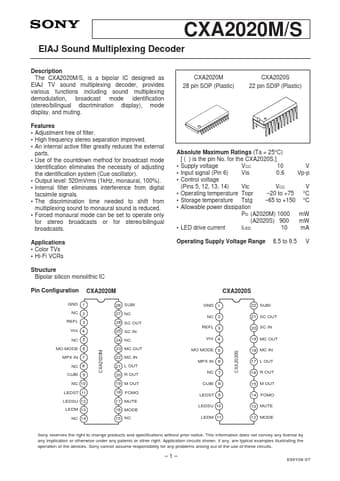

Preview of CXA2020S PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
CXA2020S
Manufacturer
Sony Corporation
File Size
247.21 KB
Datasheet
CXA2020S_SonyCorporation.pdf
Description
EIAJ Sound Multiplexing Decoder
