CXA2095S - Y/C/RGB/Sync/Deflection for Color TV

Name: CXA2095S
SKU: CXA2095S-199406

Sony Corporation

📥 Download Datasheet

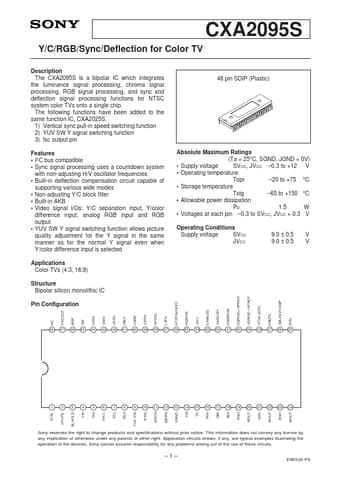

CXA2095S Datasheet Preview — Preview of CXA2095S PDF

Datasheet Details

Part number	CXA2095S
Manufacturer	Sony Corporation
File Size	428.72 KB
Description	Y/C/RGB/Sync/Deflection for Color TV
Datasheet	CXA2095S_SonyCorporation.pdf

CXA2095S Product details

Description

The CXA2095S is a bipolar IC which integrates the luminance signal processing, chroma signal processing, RGB signal processing, and sync and deflection signal processing functions for NTSC system color TVs onto a single chip.

Features

I2C bus compatible.
Sync signal processing uses a countdown system with non-adjusting H/V oscillator frequencies.
Built-in deflection compensation circuit capable of supporting various wide modes.
Non-adjusting Y/C block filter.
Built-in AKB.
Video signal I/Os: Y/C separation input, Y/color difference input, analog RGB input and RGB output.
YUV SW Y signal switching function allows picture quality adjustment for the Y signal in the.
