CXA2515AN RF Amplifier for CD Player and CD-ROM

Sony Corporation

CXA2515AN Description

CXA2515AM/AN RF Amplifier for CD Player and CD-ROM For the availability of this product, please contact the sales office..
The CXA2515AM/AN is an IC for RF signal processing of CD player and CD-ROM. Wide-band RF amplifier.

CXA2515AN Features

* Wide-band RF amplifier. (RF signal fc ≥ 12MHz)
* RF equalizer (T type)
* EFM time constant can be adjusted (with switching function)
* APC (Automatic Power Control) function
* Power saving function
* Supports laser coupler Functions
* RF summ

CXA2515AN Applications

* CD players
* CD-ROM drives Sony reserves the right to change products and specifications without prior notice. This information does not convey any license by any implication or otherwise under any patents or other right. Application circuits shown, if any, are typical examples il

📥 Download Datasheet

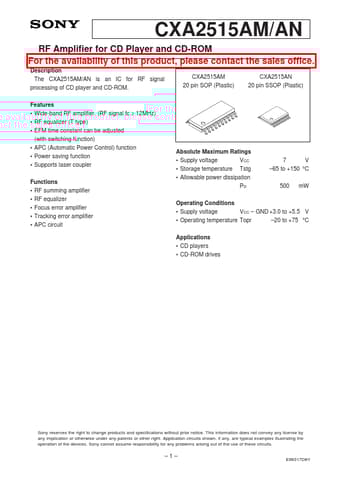

CXA2515AN Datasheet Preview — Preview of CXA2515AN PDF

Datasheet Details

Part number: CXA2515AN
Manufacturer: Sony Corporation
File Size: 270.22 KB
Datasheet: CXA2515AN_SonyCorporation.pdf
Description: RF Amplifier for CD Player and CD-ROM
