CXA3025N, All Band TV Tuner IC (VHF-CATV-UHF)

CXA3025N All Band TV Tuner IC (VHF-CATV-UHF) .
The CXA3025N is a single chip TV tuner IC which performs as a mixer, oscillator for UHF and VHFCATV bands.

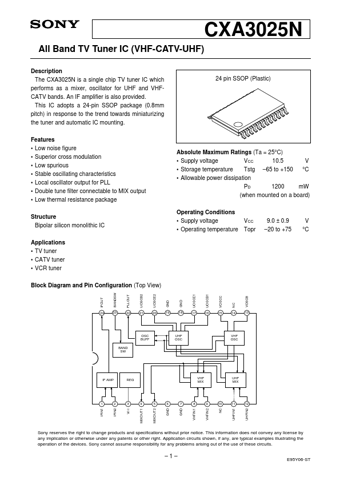

datasheet Preview Page 1 from Datasheet4u.com

CXA3025N_SonyCorporation.pdf

CXA3025N Datasheet Preview — Preview of CXA3025N PDF

Datasheet Details

Part number:

CXA3025N

Manufacturer:

Sony Corporation

File Size:

233.03 KB

Description:

All Band TV Tuner IC (VHF-CATV-UHF)

Features

* Low noise figure
* Superior cross modulation
* Low spurious
* Stable oscillating characteristics
* Local oscillator output for PLL
* Double tune filter connectable to MIX output
* Low thermal resistance package Structure Bipolar silicon monol

Applications

* TV tuner
* CATV tuner
* VCR tuner Block Diagram and Pin Configuration (Top View) BANDSW UOSCB2 UOSCE2 UOSCE1 PLLOUT UOSCB1 VOSCC GND NC VOSCB IFOUT GND 24 pin SSOP (Plastic) Absolute Maximum Ratings (Ta = 25°C) 10.5 V
* Supply voltage VCC
* Storage tempera
