CXA3117AN, IF Amplifier for M-ary FSK Pagers

CXA3117AN IF Amplifier for M-ary FSK Pagers .
The CXA3117AN is a low current consumption FM IF amplifier which employs the newest bipolar process.

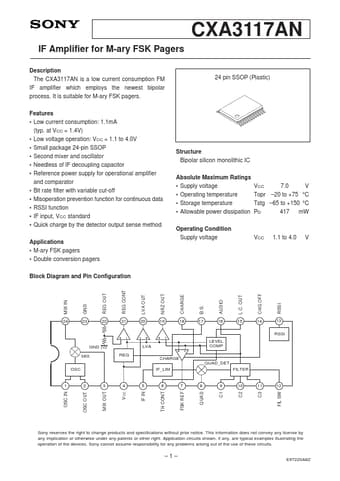

datasheet Preview Page 1 from Datasheet4u.com

CXA3117AN_SonyCorporation.pdf

CXA3117AN Datasheet Preview — Preview of CXA3117AN PDF

Datasheet Details

Part number:

CXA3117AN

Manufacturer:

Sony Corporation

File Size:

394.02 KB

Description:

IF Amplifier for M-ary FSK Pagers

Features

* Low current consumption: 1.1mA (typ. at VCC = 1.4V)
* Low voltage operation: VCC = 1.1 to 4.0V
* Small package 24-pin SSOP
* Second mixer and oscillator
* Needless of IF decoupling capacitor
* Reference power supply for operational amplifier and comp

Applications

* M-ary FSK pagers
* Double conversion pagers Block Diagram and Pin Configuration REG OUT REG CONT CHG OFF 24 pin SSOP (Plastic) Structure Bipolar silicon monolithic IC Absolute Maximum Ratings
* Supply voltage
* Operating temperature
* Storage temperature
