CXA3117N Datasheet, Pagers, Sony Corporation

CXA3117N Features

  • Pagers
  • Low current consumption: 1.1mA (typ. at VCC = 1.4V)
  • Low voltage operation: VCC = 1.1 to 4.0V
  • Small package 24-pin SSOP
  • Second mixer and oscillato

PDF File Details

Part number:

CXA3117N

Manufacturer:

Sony Corporation

File Size:

397.49kb

Download:

📄 Datasheet

Description:

If amplifier for m-ary fsk pagers. The CXA3117N is a low current consumption FM IF amplifier which employs the newest bipolar process. It is suitable for M-ary FSK page

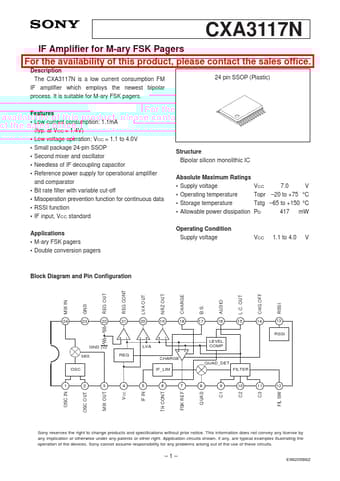

Datasheet Preview: CXA3117N 📥 Download PDF (397.49kb)
Page 2 of CXA3117N Page 3 of CXA3117N

CXA3117N Application

  • Applications
  • M-ary FSK pagers
  • Double conversion pagers 24 pin SSOP (Plastic) Structure Bipolar silicon monolithic IC Absolute M

TAGS

CXA3117N
Amplifier
for
M-ary
FSK
Pagers
Sony Corporation
