CXA3201N - RX Gain Control Amplifier

Sony Corporation

📥 Download Datasheet

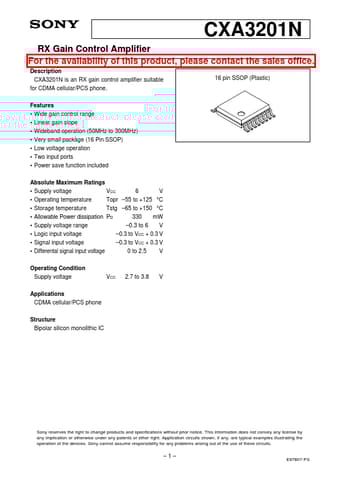

CXA3201N Datasheet Preview — Preview of CXA3201N PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: CXA3201N
Manufacturer: Sony Corporation
File Size: 189.16 KB
Datasheet: CXA3201N_SonyCorporation.pdf
Description: RX Gain Control Amplifier

CXA3201N Product details

Description

CXA3201N is an RX gain control amplifier suitable for CDMA cellular/PCS phone.

Features

Wide gain control range.
Linear gain slope.
Wideband operation (50MHz to 300MHz).
Very small package (16 Pin SSOP).
Low voltage operation.
Two input ports.
Power save function included Absolute Maximum Ratings.
Supply voltage VCC 6 V.
Operating temperature Topr.
55 to +125 °C.
Storage temperature Tstg.
65 to +150 °C.
Allowable Power dissipation PD 330 mW.
Supply voltage ra.
