CXA3506R - 3-channel 8-bit 120MSPS A/D Converter Amplifier PLL

Description

The CXA3506R is a 3-channel 8-bit 120MSPS A/D converter with built-in amplifier and PLL developed for LCD projectors and LCD monitors.

The CXA3506R inputs RGB graphics signals from personal computers or others.

Features

  • Supply voltage: 5V, 3.3V.
  • Power consumption: 1.7W typ. (120MSPS).
  • 144-pin LQFP.
  • 3-ch AMP and PLL eliminate design time for mutual connections. Structure Bipolar silicon monolithic IC.

📥 Download Datasheet

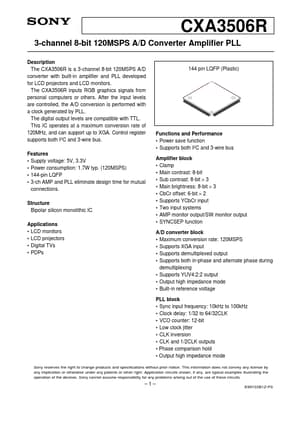

Datasheet preview – CXA3506R

Datasheet Details

Part number CXA3506R
Manufacturer Sony Semiconductor Solutions
File Size 2.07 MB
Description 3-channel 8-bit 120MSPS A/D Converter Amplifier PLL
Datasheet download datasheet CXA3506R Datasheet
Additional preview pages of the CXA3506R datasheet.

📁 Similar Datasheet

Other Datasheets by Sony Corporation
  • CXA3503R - Driver/Timing Generator for Color LCD Panels
  • CXA3510N - 4ch. Read/Write Amplifier for Thin Film Head of Hard Disk Drive
  • CXA3512R - LCD Driver
  • CXA3516R - 3-channel 8-bit 165MSPS A/D Converter Amplifier PLL
  • CXA3522R - Driver/Timing Generator for Color LCD Panels
  • CXA3541N - 2-channel Read/Write Amplifier for GMR-Ind Head Hard Disk Drive
  • CXA3555N - All Band Tuner IC with On-chip PLL
  • CXA3556N - IF Down Converter for Digital Broadcast

Full PDF Text Transcription

Click to expand full text
CXA3506R 3-channel 8-bit 120MSPS A/D Converter Amplifier PLL Description The CXA3506R is a 3-channel 8-bit 120MSPS A/D converter with built-in amplifier and PLL developed for LCD projectors and LCD monitors. The CXA3506R inputs RGB graphics signals from personal computers or others. After the input levels are controlled, the A/D conversion is performed with a clock generated by PLL. The digital output levels are compatible with TTL. This IC operates at a maximum conversion rate of 120MHz, and can support up to XGA. Control register supports both I2C and 3-wire bus. Features • Supply voltage: 5V, 3.3V • Power consumption: 1.7W typ. (120MSPS) • 144-pin LQFP • 3-ch AMP and PLL eliminate design time for mutual connections.
