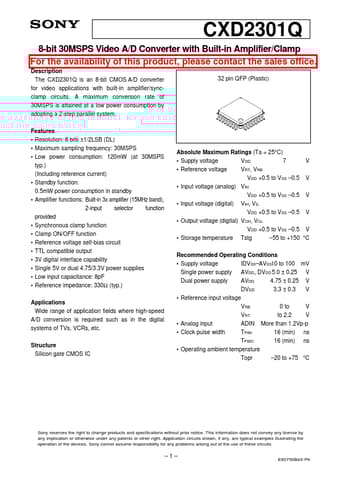

CXD2301Q Datasheet, Amplifier/clamp, Sony Corporation

CXD2301Q Features

• Amplifier/clamp
• Resolution: 8 bits ±1/2LSB (DL)
• Maximum sampling frequency: 30MSPS
• Low power consumption: 120mW (at 30MSPS typ.) (Including reference current)
• St

PDF File Details

Part number:

CXD2301Q

Manufacturer:

Sony Corporation

File Size:

473.83kb

Download:

📄 Datasheet

Description:

8-bit 30msps video a/d converter with built-in amplifier/clamp. The CXD2301Q is an 8-bit CMOS A/D converter for video applications with built-in amplifier/syncclamp circuits. A maximum conversion r

CXD2301Q Application

• Applications with built-in amplifier/syncclamp circuits. A maximum conversion rate of 30MSPS is attained at a low power consumption by adopting a 2-
